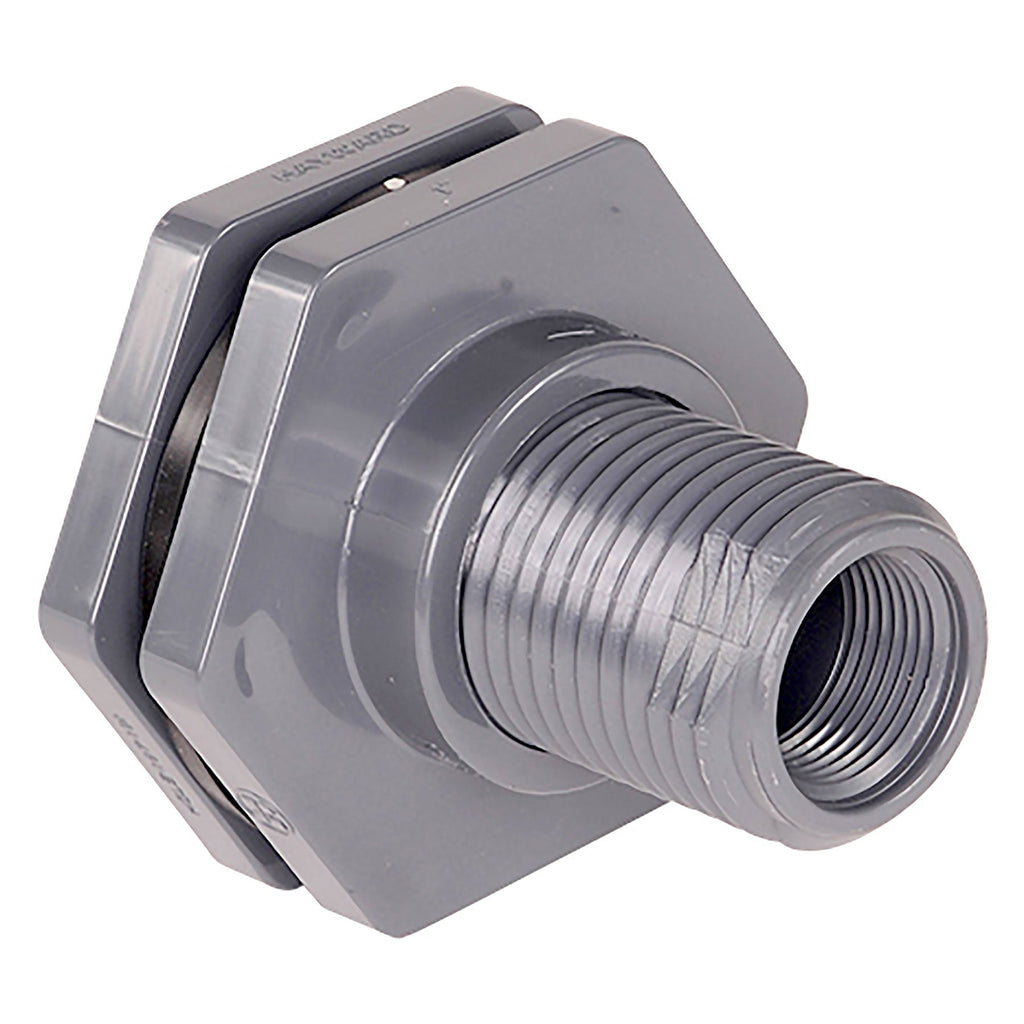

Hayward CPVC Bulkhead BFA Large Flange Long Shaft 1/2 to 1 in.
Roll over image to zoom in Click on image to zoom
Hayward CPVC Bulkhead BFA Large Flange Long Shaft 1/2 to 1 in.

CPVC Bulkhead, BFA Series, Long Shaft, Large Flange, 1/2 in. to 1 in. Sizes

HaywardSKU: BFA2005CEL
Grid List
1/2 in. EPDM Soc x Thr CPVC Bulkhead
Size:
Gasket:
Connection:
Price:
$44.00
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/2 in. EPDM Soc x Thr CPVC Bulkhead
BFA2005CEL
$44.00
1/2 in. FPM Soc x Thr CPVC Bulkhead
BFA2005CFL
$63.20
1/2 in. EPDM Soc x Soc CPVC Bulkhead
BFA2005SEL
$44.00
1/2 in. EPDM Thr x Thr CPVC Bulkhead
BFA2005TEL
$44.00
3/4 in. EPDM Soc x Thr CPVC Bulkhead
BFA2007CEL
$51.10
1 in. EPDM Soc x Thr CPVC Bulkhead
BFA2010CEL
$56.56
1/2 in. FPM Soc x Soc CPVC Bulkhead
BFA2005SFL
$63.20
1/2 in. FPM Thr x Thr CPVC Bulkhead
BFA2005TFL
$63.20
3/4 in. FPM Soc x Thr CPVC Bulkhead
BFA2007CFL
$70.75
3/4 in. EPDM Soc x Soc CPVC Bulkhead
BFA2007SEL
$51.10
3/4 in. EPDM Thr x Thr CPVC Bulkhead
BFA2007TEL
$51.10
1 in. FPM Soc x Thr CPVC Bulkhead
BFA2010CFL
$75.58
1 in. EPDM Soc x Soc CPVC Bulkhead
BFA2010SEL
$56.56
1 in. EPDM Thr x Thr CPVC Bulkhead
BFA2010TEL
$56.56
3/4 in. FPM Soc x Soc CPVC Bulkhead
BFA2007SFL
$70.75
3/4 in. FPM Thr x Thr CPVC Bulkhead
BFA2007TFL
$70.75
1 in. FPM Soc x Soc CPVC Bulkhead
BFA2010SFL
$75.58
1 in. FPM Thr x Thr CPVC Bulkhead
BFA2010TFL
$75.58

Product has been added to your cart

Please input the Quantity!

Description

BFA Large Flange Series bulkhead fittings are the perfect solution for extra large tanks. Designed with a longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC, and PP. Available with FPM (FKM) or EPDM gasket.

All measurements in inches unless specified

Bulkhead Size Min Rigid Tank Radius Min Flexible Tank Radius Max Wall Min Hole Max Hole
1/2" 12.00 11.00 2.08 1.38 1.41
3/4" 13.50 12.75 2.08 1.63 1.66
1" 20.50 18.50 2.08 1.87 1.91
