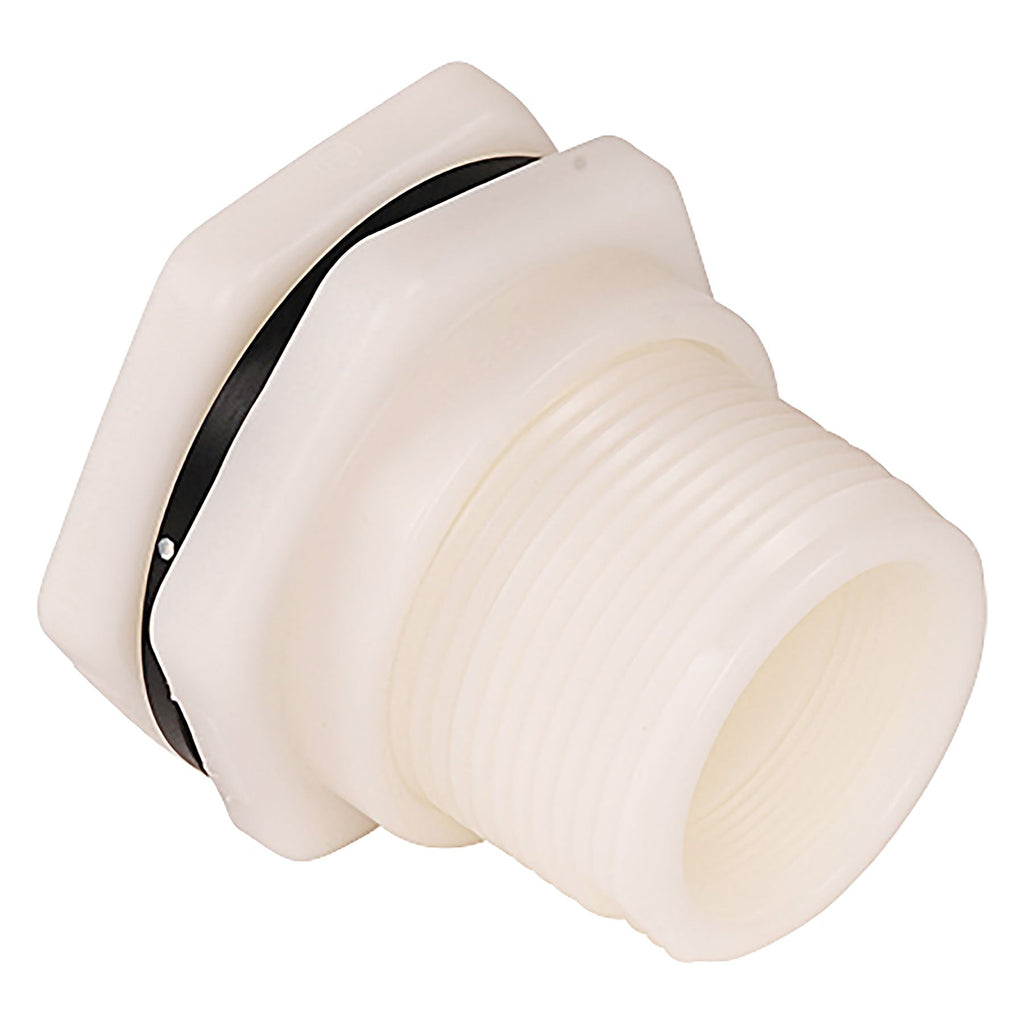

Hayward PP Bulkhead BFA Long Shaft 1/2 to 6 in.
Roll over image to zoom in Click on image to zoom
Hayward PP Bulkhead BFA Long Shaft 1/2 to 6 in.

Polypropylene Bulkhead, BFA Series, Long Shaft, 1/2 in. to 6 in. Sizes

HaywardSKU: 3495-E
No reviews
Grid List
1/2 in. EPDM Standard Flange Thr x Thr PP Bulkhead
Size:
Gasket:
Connection:
Price:
$37.95
Stock:
In Stock - Ships today if ordered by 2 EST (M-F)

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/2 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3495-E
$37.95
1/2 in. FPM Standard Flange Thr x Thr PP Bulkhead
3495-V
$50.05
3/4 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3496-E
$45.45
1 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3497-E
$58.33
1-1/4 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3498-E
$74.21
1-1/2 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3499-E
$74.21
2 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3500-E
$115.21
3 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3501-E
$231.37
4 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3502-E
$432.80
6 in. EPDM Standard Flange Thr x Thr PP Bulkhead
3503-E
$657.43
3/4 in. FPM Standard Flange Thr x Thr PP Bulkhead
3496-V
$58.33
1 in. FPM Standard Flange Thr x Thr PP Bulkhead
3497-V
$75.03
1-1/4 in. FPM Standard Flange Thr x Thr PP Bulkhead
3498-V
$90.64
1-1/2 in. FPM Standard Flange Thr x Thr PP Bulkhead
3499-V
$90.64
2 in. FPM Standard Flange Thr x Thr PP Bulkhead
3500-V
$148.06
3 in. FPM Standard Flange Thr x Thr PP Bulkhead
3501-V
$264.76
4 in. FPM Standard Flange Thr x Thr PP Bulkhead
3502-V
$466.15
6 in. FPM Standard Flange Thr x Thr PP Bulkhead
3503-V
$1,217.40

Product has been added to your cart

Please input the Quantity!

Description

BFA Series bulkhead fittings offer a longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC and PP. Gaskets are FPM or EPDM. Large flange option is available.

1/2" - 6"

Hayward BFA PP - Long Shaft - Bulkhead Fitting Specs

All measurements in inches unless specified

Bulkhead Size Min Rigid Tank Radius Min Flexible Tank Radius Max Wall Min Hole Max Hole
1/2" 7.25 6.5 2.08 1.38 1.41
3/4" 10 9.25 2.08 1.63 1.66
1" 11.75 10.7 2.08 1.87 1.91
1-1/4" 16.25 12.19 2 2.63 2.67
1-1/2" 16.25 12.19 2 2.63 2.67
2" 25.75 19.38 2 3.25 3.28
3" 30 25.25 2.12 4.5 4.54
4" 60 55 2.45 5.75 5.78
6" 114 97 3.25 8 8.06
