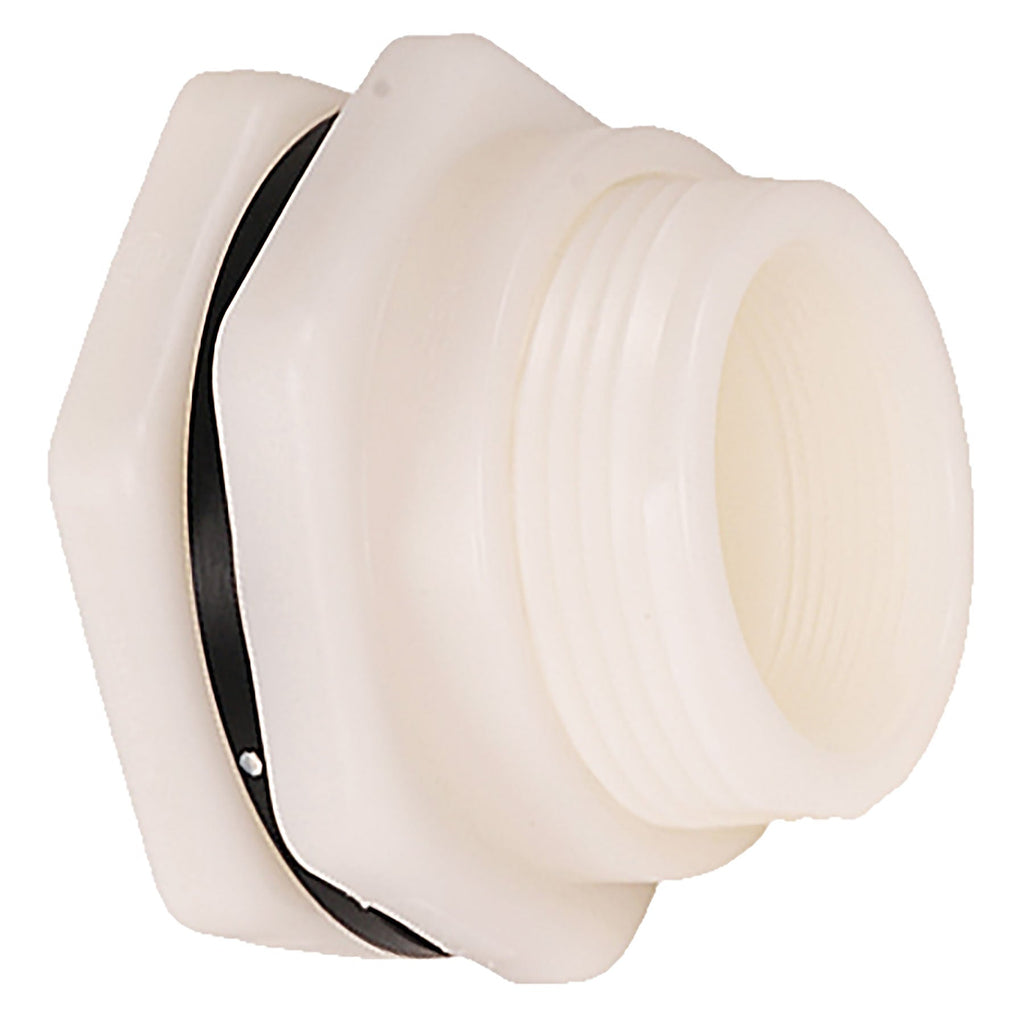

Hayward PP Bulkhead - BFAS - Short Shaft

HaywardSKU: BFAS3005TES
No reviews

Grid List
1/2 in. EPDM Thr x Thr PP Bulkhead
Size:
Gasket:
Connection:
Price:
Sale price$37.95

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/2 in. EPDM Thr x Thr PP Bulkhead
BFAS3005TES
$37.95
1/2 in. FPM Thr x Thr PP Bulkhead
BFAS3005TFS
$50.05
3/4 in. EPDM Thr x Thr PP Bulkhead
BFAS3007TES
$45.45
1 in. EPDM Thr x Thr PP Bulkhead
BFAS3010TES
$58.33
1-1/4 in. EPDM Thr x Thr PP Bulkhead
BFAS3012TES
$74.21
1-1/2 in. EPDM Thr x Thr PP Bulkhead
BFAS3015TES
$74.21
2 in. EPDM Thr x Thr PP Bulkhead
BFAS3020TES
$115.21
3 in. EPDM Thr x Thr PP Bulkhead
BFAS3030TES
$231.37
4 in. EPDM Thr x Thr PP Bulkhead
BFAS3040TES
$432.80
3/4 in. FPM Thr x Thr PP Bulkhead
BFAS3007TFS
$58.33
1 in. FPM Thr x Thr PP Bulkhead
BFAS3010TFS
$75.03
1-1/4 in. FPM Thr x Thr PP Bulkhead
BFAS3012TFS
$90.64
1-1/2 in. FPM Thr x Thr PP Bulkhead
BFAS3015TFS
$90.64
2 in. FPM Thr x Thr PP Bulkhead
BFAS3020TFS
$148.06
3 in. FPM Thr x Thr PP Bulkhead
BFAS3030TFS
$264.76
4 in. FPM Thr x Thr PP Bulkhead
BFAS3040TFS
$466.15

Product has been added to your cart

Please input the Quantity!

Description

Hayward BFAS Series bulkhead fittings have a shorter shaft length than the BFA.

1/2" - 4"

Features

  • Short Pattern/Barrel in PVC, CPVC, or PP
  • FPM or EPDM Gasket Seal
  • Rated to 150 PSI
  • Left-Handed Threads
  • Heavy-Duty Buttress Threads to Help Prevent Leaks Under Pressure

Options

  • Ready Flanges for Making Flanged Connections to Tanks

Materials

  • PVC Cell Class 12454 per ASTM D1784
  • CPVC Cell Class 23447 per ASTM D1784
  • PP per ASTM D4101
  • Heavy-Duty FPM & EPDM Gasket Seals

Applications

  • Water & Wastewater Treatment
  • Chemical Processing
  • Food & Beverage
  • Swimming Pools, Aquariums, & Theme Parks
  • Pulp & Paper
  • Marine & Corrosive Environments
  • Metal Finishing & Plating
  • Agriculture & Irrigation
Hayward BFAS PP - Short Shaft - Bulkhead Fitting Specs

All measurements in inches unless specified

Bulkhead Size Min Rigid Tank Radius Min Flexible Tank Radius Max Wall Min Hole Max Hole
1/2" 7.25 6.5 2.08 1.38 1.41
3/4" 10 9.25 2.08 1.63 1.66
1" 11.75 10.7 2.08 1.87 1.91
1-1/4" 16.25 12.19 2 2.63 2.67
1-1/2" 16.25 12.19 2 2.63 2.67
2" 25.75 19.38 2 3.25 3.28
3" 30 25.25 2.12 4.5 4.54
4" 60 55 2.45 5.75 5.78
6" 114 97 3.25 8 8.06

Downloads


No downloads available for this product.
