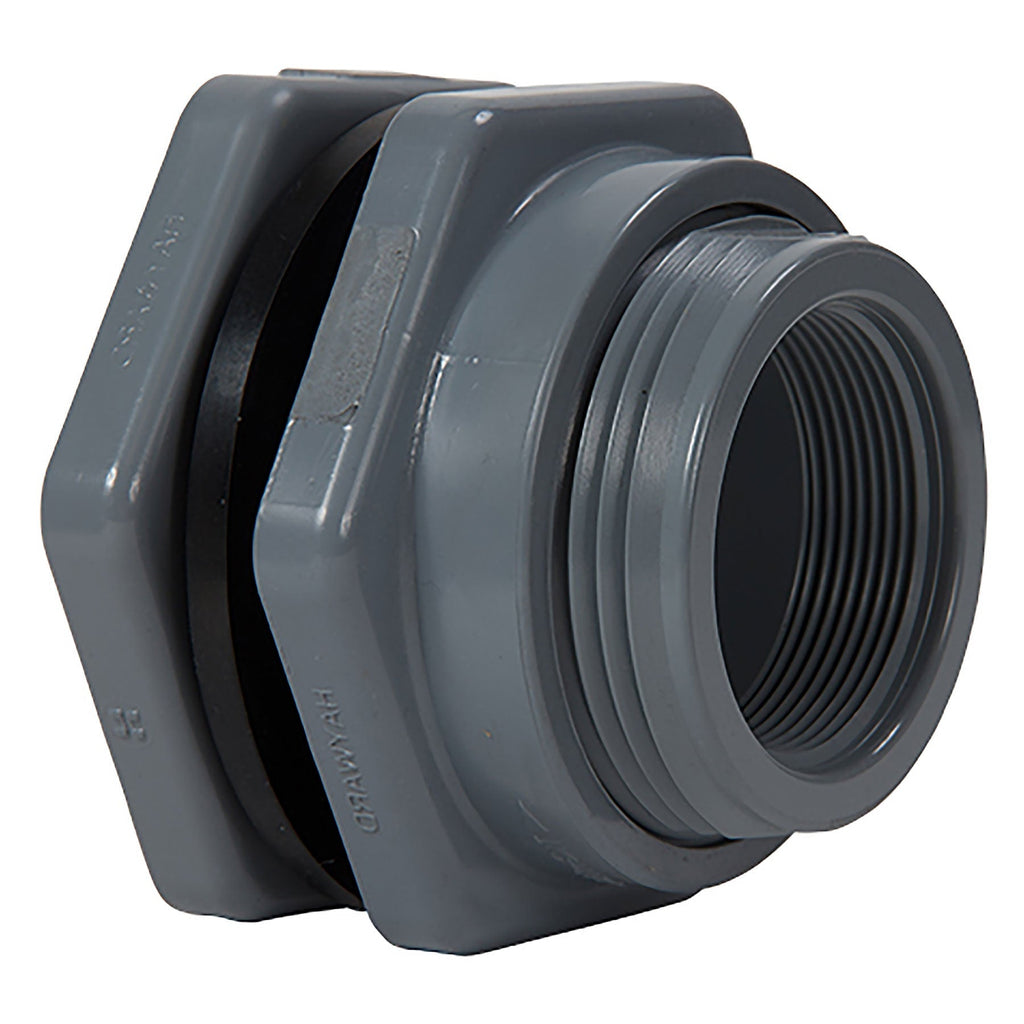

Hayward PVC Bulkhead BFAS Short Shaft 1/2 to 4 in.
Roll over image to zoom in Click on image to zoom
Hayward PVC Bulkhead BFAS Short Shaft 1/2 to 4 in.

PVC Bulkhead, BFAS Series, Short Shaft, 1/2 in. to 4 in. Sizes

HaywardSKU: S3473-SXT
Grid List
1/2 in. EPDM Soc x Thr PVC Bulkhead
Size:
Gasket:
Connection:
Price:
$25.53
Stock:
In Stock

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/2 in. EPDM Soc x Thr PVC Bulkhead
S3473-SXT
$25.53
1/2 in. FPM Soc x Thr PVC Bulkhead
S3211-SXT
$40.72
1/2 in. EPDM Thr x Thr PVC Bulkhead
S3473-TXT
$32.71
3/4 in. EPDM Soc x Thr PVC Bulkhead
S3474-SXT
$28.07
1 in. EPDM Soc x Thr PVC Bulkhead
S3475-SXT
$30.80
1-1/4 in. EPDM Soc x Thr PVC Bulkhead
S3476-SXT
$40.90
1-1/2 in. EPDM Soc x Thr PVC Bulkhead
S3477-SXT
$40.90
2 in. EPDM Soc x Thr PVC Bulkhead
S3478-SXT
$60.74
3 in. EPDM Soc x Thr PVC Bulkhead
S3479-SXT
$113.52
4 in. EPDM Soc x Thr PVC Bulkhead
S3480-SXT
$223.18
1/2 in. FPM Thr x Thr PVC Bulkhead
S3211-TXT
$47.91
3/4 in. FPM Soc x Thr PVC Bulkhead
S3212-SXT
$43.82
3/4 in. EPDM Thr x Thr PVC Bulkhead
S3474-TXT
$36.08
1 in. FPM Soc x Thr PVC Bulkhead
S3213-SXT
$49.96
1 in. EPDM Thr x Thr PVC Bulkhead
S3475-TXT
$38.99
1-1/4 in. FPM Soc x Thr PVC Bulkhead
S3214-SXT
$59.83
1-1/4 in. EPDM Thr x Thr PVC Bulkhead
S3476-TXT
$52.73
1-1/2 in. FPM Soc x Thr PVC Bulkhead
S3215-SXT
$59.83
1-1/2 in. EPDM Thr x Thr PVC Bulkhead
S3477-TXT
$56.01
2 in. FPM Soc x Thr PVC Bulkhead
S3216-SXT
$98.96
2 in. EPDM Thr x Thr PVC Bulkhead
S3478-TXT
$74.57
3 in. FPM Soc x ThrPVC Bulkhead
S3217-SXT
$176.54
3 in. EPDM Thr x Thr PVC Bulkhead
S3479-TXT
$132.22
4 in. FPM Soc x Thr PVC Bulkhead
S3218-SXT
$453.77
4 in. EPDM Thr x Thr PVC Bulkhead
S3480-TXT
$249.48
3/4 in. FPM Thr x Thr PVC Bulkhead
S3212-TXT
$51.42
1 in. FPM Thr x Thr PVC Bulkhead
S3213-TXT
$58.01
1-1/4 in. FPM Thr x Thr PVC Bulkhead
S3214-TXT
$70.12
1-1/2 in. FPM Thr x Thr PVC Bulkhead
S3215-TXT
$74.94
2 in. FPM Thr x Thr PVC Bulkhead
S3216-TXT
$113.25
3 in. FPM Thr x Thr PVC Bulkhead
S3217-TXT
$195.29
4 in. FPM Thr x Thr PVC Bulkhead
S3218-TXT
$479.52

Product has been added to your cart

Please input the Quantity!

Description

Hayward BFAS Series bulkhead fittings have a shorter shaft length than the BFA.

Features

  • Short Pattern/Barrel in PVC, CPVC, or PP
  • FPM or EPDM Gasket Seal
  • Rated to 150 PSI
  • Left-Handed Threads
  • Heavy-Duty Buttress Threads to Help Prevent Leaks Under Pressure

Options

  • Ready Flanges for Making Flanged Connections to Tanks

Materials

  • PVC Cell Class 12454 per ASTM D1784
  • CPVC Cell Class 23447 per ASTM D1784
  • PP per ASTM D4101
  • Heavy-Duty FPM & EPDM Gasket Seals

Applications

  • Water & Wastewater Treatment
  • Chemical Processing
  • Food & Beverage
  • Swimming Pools, Aquariums, & Theme Parks
  • Pulp & Paper
  • Marine & Corrosive Environments
  • Metal Finishing & Plating
  • Agriculture & Irrigation
Bulkhead Size Min Rigid Tank Radius Min Flexible Tank Radius Max Wall Min Hole Max Hole
1/2" 7.25 6.5 2.08 1.38 1.41
3/4" 10 9.25 2.08 1.63 1.66
1" 11.75 10.7 2.08 1.87 1.91
1-1/4" 16.25 12.19 2 2.63 2.67
1-1/2" 16.25 12.19 2 2.63 2.67
2" 25.75 19.38 2 3.25 3.28
3" 30 25.25 2.12 4.5 4.54
4" 60 55 2.45 5.75 5.78
6" 114 97 3.25 8 8.06
