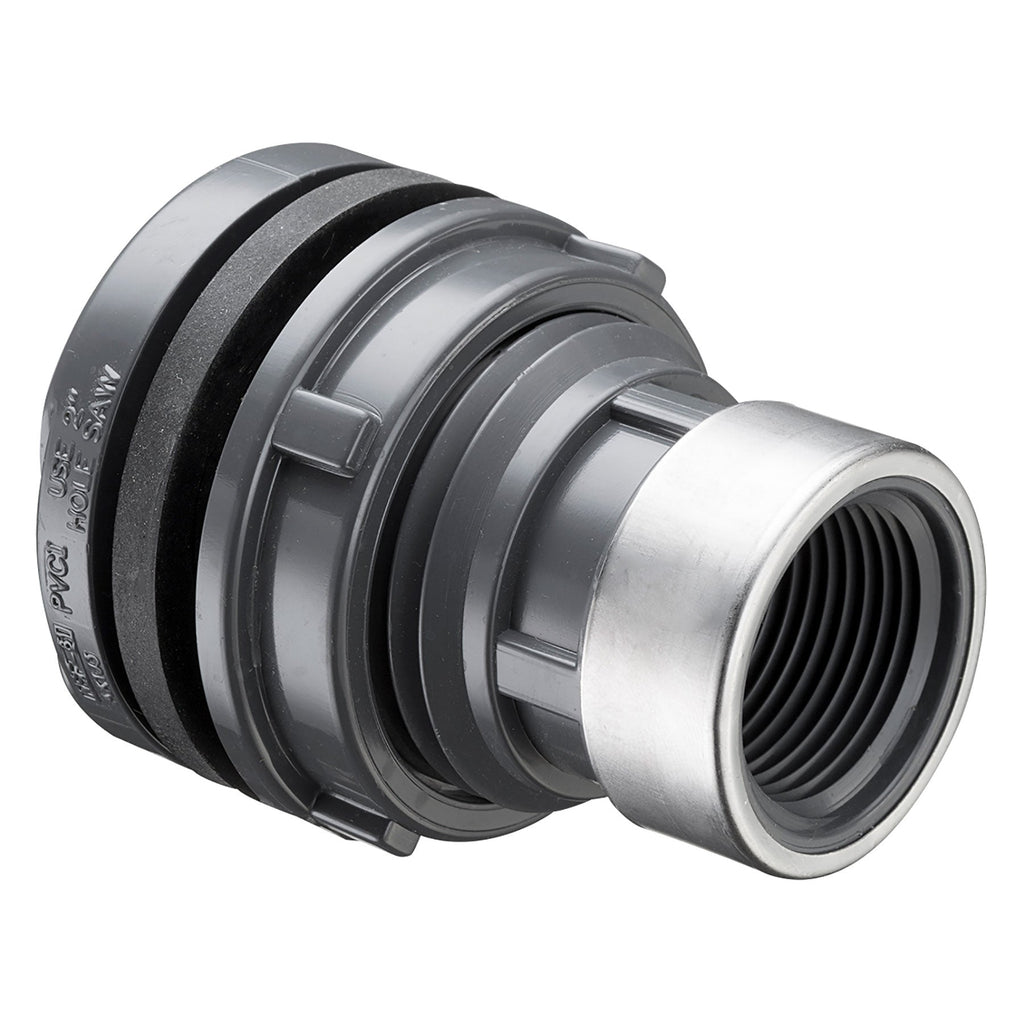

Spears PVC Bulkhead SS Reinforced Threads 1/4 to 6 in.
Roll over image to zoom in Click on image to zoom
Spears PVC Bulkhead SS Reinforced Threads 1/4 to 6 in.

PVC Bulkhead, Stainless Steel Reinforced Threads, 1/4 in. to 6 in. Sizes

SpearsSKU: 8171-002SR
No reviews
Grid List
1/4 in. Soc x SR Fipt Neoprene PVC Bulkhead
Size:
Connection:
Gasket:
Price:
$37.16
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/4 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-002SR
$37.16
3/8 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-003SR
$37.16
1/2 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-005SR
$37.16
3/4 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-007SR
$43.06
1 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-010SR
$48.51
1-1/4 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-012SR
$59.61
1-1/2 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-015SR
$68.43
2 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-020SR
$98.06
2-1/2 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-025SR
$157.90
3 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-030SR
$187.96
4 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-040SR
$347.69
6 in. Soc x SR Fipt Neoprene PVC Bulkhead
8171-060SR
$650.69
1/4 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-002SR
$38.50
1/4 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-002SR
$62.48
1/4 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-002SR
$49.70
3/8 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-003SR
$38.50
1/2 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-005SR
$38.50
3/4 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-007SR
$43.89
1 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-010SR
$53.35
1-1/4 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-012SR
$64.65
1-1/2 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-015SR
$73.47
2 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-020SR
$104.85
2-1/2 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-025SR
$163.02
3 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-030SR
$194.09
4 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-040SR
$355.86
6 in. Soc x SR Fipt EPDM PVC Bulkhead
8171E-060SR
$673.07
3/8 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-003SR
$62.48
1/2 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-005SR
$62.48
3/4 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-007SR
$68.55
1 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-010SR
$84.50
1-1/4 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-012SR
$94.63
1-1/2 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-015SR
$106.66
2 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-020SR
$163.35
2-1/2 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-025SR
$248.69
3 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-030SR
$296.02
4 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-040SR
$711.24
6 in. Soc x SR Fipt FKM PVC Bulkhead
8171V-060SR
$1,260.54
3/8 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-003SR
$49.70
1/2 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-005SR
$49.70
3/4 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-007SR
$55.01
1 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-010SR
$60.86
1-1/4 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-012SR
$81.94
1-1/2 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-015SR
$92.35
2 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-020SR
$119.67
2-1/2 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-025SR
$182.20
3 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-030SR
$216.90
4 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-040SR
$386.14
6 in. Fipt x SR Fipt Neoprene PVC Bulkhead
8172-060SR
$746.94
1/4 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-002SR
$51.14
1/4 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-002SR
$76.04
3/8 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-003SR
$51.14
1/2 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-005SR
$51.14
3/4 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-007SR
$56.05
1 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-010SR
$67.07
1-1/4 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-012SR
$89.04
1-1/2 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-015SR
$99.33
2 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-020SR
$128.10
2-1/2 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-025SR
$188.25
3 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-030SR
$224.09
4 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-040SR
$395.35
6 in. Fipt x SR Fipt EPDM PVC Bulkhead
8172E-060SR
$772.84
3/8 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-003SR
$76.04
1/2 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-005SR
$76.04
3/4 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-007SR
$81.66
1 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-010SR
$93.81
1-1/4 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-012SR
$107.84
1-1/2 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-015SR
$125.90
2 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-020SR
$183.24
2-1/2 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-025SR
$269.05
3 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-030SR
$320.37
4 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-040SR
$746.94
6 in. Fipt x SR Fipt FKM PVC Bulkhead
8172V-060SR
$1,410.43

Product has been added to your cart

Please input the Quantity!

Description

PVC / Neoprene / Soc x Fipt Steel Reinforced

spears new style bulkhead diagram
SKU Size L L1 M M1 N R
8171-002SR 1/4 2-1/2 1-13/16 1-1/2 1-1/16 1-1/4 1/2
8171-003SR 3/8 2-1/2 1-13/16 1-5/8 1-3/16 1-3/16 1/2
8171-005SR 1/2 2-15/16 2-7/16 2-1/32 1-15/32 1-9/32 5/8
8171-007SR 3/4 2-15/16 2-3/16 2-1/4 1-5/8 1-1/4 5/8
8171-010SR 1 3-5/16 2-13/16 2-5/8 1-31/32 1-1/4 5/8
8171-012SR 1-1/4 3-13/32 2-5/8 3-3/32 2-5/16 1-17/32 5/8
8171-015SR 1-1/2 3-5/8 2-13/16 3-5/8 2-11/16 1-1/4 5/8
8171-020SR 2 4-1/8 3-1/4 4-7/8 3-1/4 1-5/8 3/4
8171-025SR 2-1/2 4-7/8 3-7/8 5-1/4 3-13/16 1-11/16 1
8171-030SR 3 5-1/2 4-1/2 6 4-9/16 2-3/16 1
8171-040SR 4 5 4 7-1/2 5-1/2 1-1/4 1-1/4

PVC / EPDM / Soc x Fipt Steel Reinforced

spears new style bulkhead diagram
SKU Size L L1 M M1 N R
8171E-002SR 1/4 2-1/2 1-13/16 1-1/2 1-1/16 1-1/4 1/2
8171E-003SR 3/8 2-1/2 1-13/16 1-5/8 1-3/16 1-3/16 1/2
8171E-005SR 1/2 2-15/16 2-7/16 2-1/32 1-15/32 1-9/32 5/8
8171E-007SR 3/4 2-15/16 2-3/16 2-1/4 1-5/8 1-1/4 5/8
8171E-010SR 1 3-5/16 2-13/16 2-5/8 1-31/32 1-1/4 5/8
8171E-012SR 1-1/4 3-13/32 2-5/8 3-3/32 2-5/16 1-17/32 5/8
8171E-015SR 1-1/2 3-5/8 2-13/16 3-5/8 2-11/16 1-1/4 5/8
8171E-020SR 2 4-1/8 3-1/4 4-7/8 3-1/4 1-5/8 3/4
8171E-025SR 2-1/2 4-7/8 3-7/8 5-1/4 3-13/16 1-11/16 1
8171E-030SR 3 5-1/2 4-1/2 6 4-9/16 2-3/16 1
8171E-040SR 4 5 4 7-1/2 5-1/2 1-1/4 1-1/4

PVC / FKM / Fipt x Fipt Steel Reinforced

spears new style bulkhead diagram
SKU Size L L1 M M1 N R
8172V-002SR 1/4 2-1/2 1-7/8 1-9/16 1-1/16 1-5/16 1/2
8172V-003SR 3/8 2-1/2 1-13/16 1-5/8 1-3/16 1-3/8 1/2
8172V-005SR 1/2 2-15/16 2-3/16 2 1-7/16 1-1/2 5/8
8172V-007SR 3/4 2-15/16 2-15/32 2-1/4 1-5/8 1-3/16 5/8
8172V-010SR 1 3-15/16 2-19/32 2-5/8 1-31/32 1-1/4 5/8
8172V-012SR 1-1/4 3-13/32 2-27/32 3-3/32 2-5/16 1-17/32 5/8
8172V-015SR 1-1/2 3-5/8 2-13/16 3-5/8 2-11/16 1-3/4 5/8
8172V-020SR 2 4-1/8 3-1/4 4-27/32 3-1/32 2-1/8 3/4
8172V-025SR 2-1/2 4-7/8 3-7/8 5-1/4 3-13/16 2-1/4 1
8172V-030SR 3 5-15/32 4-17/32 5-31/32 4-17/32 2-21/32 1
8172V-040SR 4 5 4 7-1/2 5-1/2 2 1-1/4

Tank Adapter Hole Size Specs

Tank Adapter Size Minimum Hole Size Minimum Inside Curvature Radius (inches) Maximum Tank Wall Thickness (inches)
1/4 1-1/16 2.50 .50
3/8 1-3/16 3.00 .50
1/2 1-1/2 4.00 .75
3/4 1-3/4 5.00 .75
1 2 7.00 .86
1-1/4 2-3/8 9.50 .86
1-1/2 2-3/4 12.00 .86
2 3-3/8 18.50 1.19
2-1/2 3-7/8 23.50 1.50
3 4-5/8 32.50 2.00
4 5-1/2 43.50 1.25
6 8 79.50 2.06
8 10-3/8 98.00 4.25

Tank Adapter Gasket Specs

spears new style bulkhead diagram
Size O.D.* I.D.* T
1/4 1-1/16 2.50 .50
3/8 1-3/16 3.00 .50
1/2 1-1/2 4.00 .75
3/4 1-3/4 5.00 .75
1 2 7.00 .86
1-1/4 2-3/8 9.50 .86
1-1/2 2-3/4 12.00 .86
2 3-3/8 18.50 1.19
2-1/2 3-7/8 23.50 1.50
3 4-5/8 32.50 2.00
4 5-1/2 43.50 1.25
6 8 79.50 2.06
8 10-3/8 98.00 4.25
